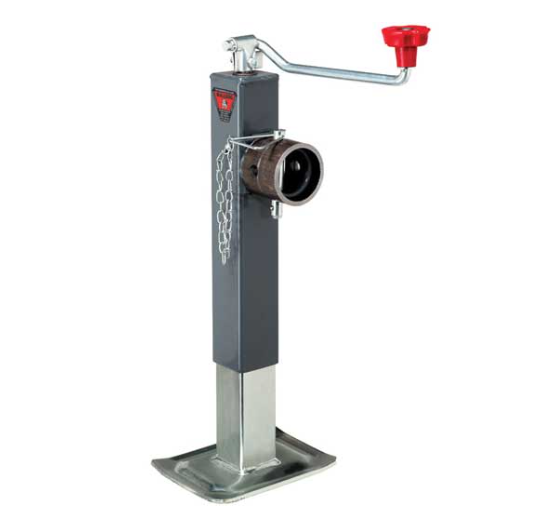

BULLDOG’s 8,000 lbs. support capacity square jack is a reliable and versatile option suitable for various industries including agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. Its compact design is perfect for applications where larger square tube jacks are not suitable.

– Painted outer tube can be used as the final finish or primer
– Zinc-plated inner tube and drop leg for enhanced durability
– 4.7″ outer/inner tube overlap for optimal side load performance
– 5/8″ screw stem to prevent twisting off
– Patented screw nut stop to protect against damage when fully extended
– Topwind models feature bushing in top cap and eagle claw grip
– Sidewind models use a 1/4″ cross pin that guards against shearing jack pin
– Sidewind models have a 1:1.33 gear ratio for smooth operation
– Warranty: Limited 5 Year Warranty
– Dimensions: 25.25″ x 9.2″ x 8″ (Shipping)
– Finish: Gray Paint and Clear Zinc Plating
– Weight: 26 lbs
– Travel: 15 in.
– Retracted Height: 25.06 in.
– Extended Height: 53.56 in.
– Foot Width: 6 in.
– Foot Length: 8 in.
– Foot Plate Size: 8 in. x 6 in.
– Support Capacity: 8,000 lbs.
– Handle Style: Sidewind
– Material: Steel
