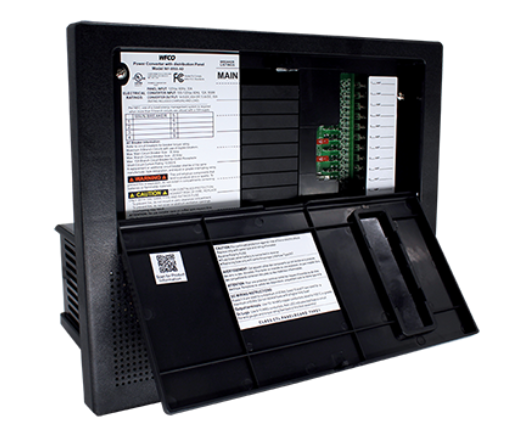

The WFCO WF-8955-AD Power Center is a cutting-edge RV power solution that revolutionizes battery charging with its Auto-Detect technology. This advanced system intelligently identifies battery types, such as lithium-ion and lead-acid, ensuring optimal charging profiles without the need for manual adjustments. With a focus on accurate charging, this power center eliminates the risks of over and under-charging, providing peace of mind for RV owners and maximizing battery life. Offering multi-stage charging and current monitoring for both lead-acid and lithium-ion batteries, the WF-8955-AD Power Center streamlines power management for a seamless RV experience.

– With Auto-Detect Intelligent Battery Detection
– Selects Correct Charging Profile for Lead-Acid & Lithium-Ion Batteries
– Color: Black
– Case Material: Plastic
– Power Input: 940W
– Input Voltage: 105-130 VAC / 60 Hz
– Output Current (LA/LI): 55A / 50A
– Converter Type (LA/LI): 3 Stage Intelligent Charge / 2 Stage Intelligent Charge
– Voltage Output: 13.2 – 14.4 VDC / 13.6 – 14.6 VDC
– Normal Mode: 13.6 VDC
– Trickle Charge Mode (LA Only): 13.2 VDC
– Bulk Charge Mode (LA/LI): 14.4 VDC / 14.6 VDC
– AC Circuits: (1) Main with (9) Branch Circuits
– DC Circuits: 11DC, (9) 20 AMP & (2) 30 AMP
– Outer Dimensions: 14”W x 11-3/4”H x 8-1/2”D
– Rough Opening: 12-3/16”W x 10-7/8”H x 7-1/4”D
– Weight: 7.75 lbs.
– Certifications: UL and cUL listed and FCC Class B Compliant
– Safety Features/Protections: Over Current, Over Temperature, Over Voltage, Reverse Polarity
– Replaces: WF-8955PEC, WF-8955PEC-B-LIS
– 2 Year Limited Warranty
